HONEYWELL 05074-A-012 / 0574-A-0131 – I/O Interface and Termination Modules for DCS Cabinets
The HONEYWELL 05074-A-012 and 0574-A-0131 form a reliable pairing typically used as I/O interface and termination modules within Honeywell DCS architectures. From my experience, they slot into existing racks cleanly, handling signal conditioning and field wiring without forcing a redesign of the cabinet. Plants use them to keep legacy TDC/Experion nodes running at full uptime while planning phased upgrades.
Key Features
- Drop-in compatibility – Designed to fit standard Honeywell DCS I/O racks, so swap-outs are quick and low risk.
- Field wiring convenience – 0574-A-0131 serves as a neat termination point, helping keep analog and discrete wiring organized and serviceable.
- Stable signal handling – 05074-A-012 provides the interface layer that typically manages signal buffering and conditioning for consistent reads/writes.
- Backplane powered – No external PSU on the module; power is supplied through the rack backplane to simplify wiring.
- Service-friendly design – Front access for removal and inspection; in many cases status indication is available for quick diagnostics.
- Lifecycle support – Commonly stocked as spares for brownfield sites, helping maintenance teams reduce unplanned downtime.

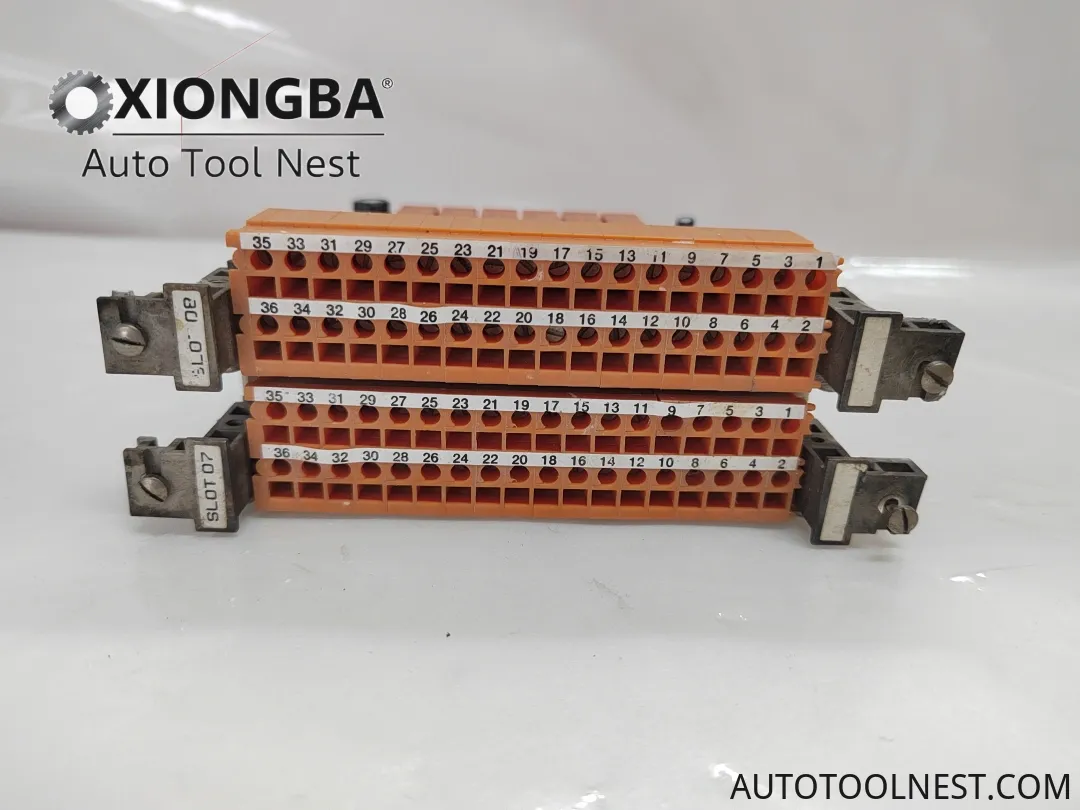

Typical HONEYWELL I/O interface with matching termination module
Technical Specifications
| Brand / Model | HONEYWELL 05074-A-012 / 0574-A-0131 |
| Product Type | I/O interface module with matching field termination module |
| System Compatibility | Commonly deployed in Honeywell DCS platforms (e.g., TDC heritage and many Experion PKS cabinets) |
| Power Requirements | Supplied via backplane; no external module power input |
| Signal I/O Types | Supports analog and discrete channels when used with the appropriate I/O cards and field terminations |
| Communication Interface | Proprietary Honeywell rack/backplane interface; no front-panel serial ports |
| Operating Temperature | Typically 0–55°C in conditioned control cabinets (application-dependent) |
| Installation Method | Plug-in rack module with separate terminal assembly; front-serviceable in standard industrial enclosures |
Application Fields
These modules are a practical fit wherever Honeywell DCS cabinets are in service. You might notice that plants use them to stabilize legacy I/O points without touching the upper-layer controls logic.
- Petrochemical and refining – maintaining AI/DI/DO loops during turnarounds with minimal rework
- Power generation – turbine auxiliaries, boiler balance-of-plant signals
- Pulp & paper – stable analog I/O for stock prep and machine sections
- Pharma & biotech – controlled cabinet environments with validated configurations
- Water & wastewater – brownfield station upgrades where downtime windows are tight
Advantages & Value
- Reliability – Proven Honeywell hardware form factor; fewer surprises during commissioning.
- Compatibility – Works with existing racks and wiring schemes, reducing the need for panel redesign.
- Cost control – Keeps installed assets productive; avoids premature platform migration.
- Service continuity – Quick swap-out keeps critical loops running, especially in continuous process units.
- Technical support – Documentation and lifecycle notes are widely available for maintenance teams.
“We replaced two legacy cards during a night shift and were back on spec before morning rounds,” a maintenance lead told us. That seems to be the typical experience when the rack and wiring are in decent shape.
Installation & Maintenance
- Cabinet conditions – Install in a clean, ventilated control cabinet; maintain ambient within typical 0–55°C and 5–95% RH non-condensing.
- Wiring practices – Use shielded cable for analog signals; segregate low-level analog from high-voltage lines to minimize noise.
- Grounding – Ensure proper panel bonding and instrument ground; keep shield terminations consistent with site standards.
- ESD handling – Treat modules as ESD-sensitive; use wrist straps and antistatic packaging during service.
- Commissioning – Verify channel assignment in the control database; perform loop checks (AI/AO/DI/DO) before handover.
- Routine care – Periodic visual inspection for loose terminals, dust buildup, or heat discoloration; clean with dry air only.
- Spares strategy – Keep at least one tested spare per cabinet or per critical unit to shorten recovery time.
Quality & Certifications
- Certifications – Units in this family are commonly supplied with CE and UL/CSA approvals; RoHS varies by production year.
- Manufacturing quality – Built for continuous operation in industrial environments with robust mechanical design.
- Warranty – Typically covered by the manufacturer’s limited warranty; exact terms depend on the supply channel and contract.
- Traceability – Check the module label/serial for exact revision to match your cabinet documentation.
