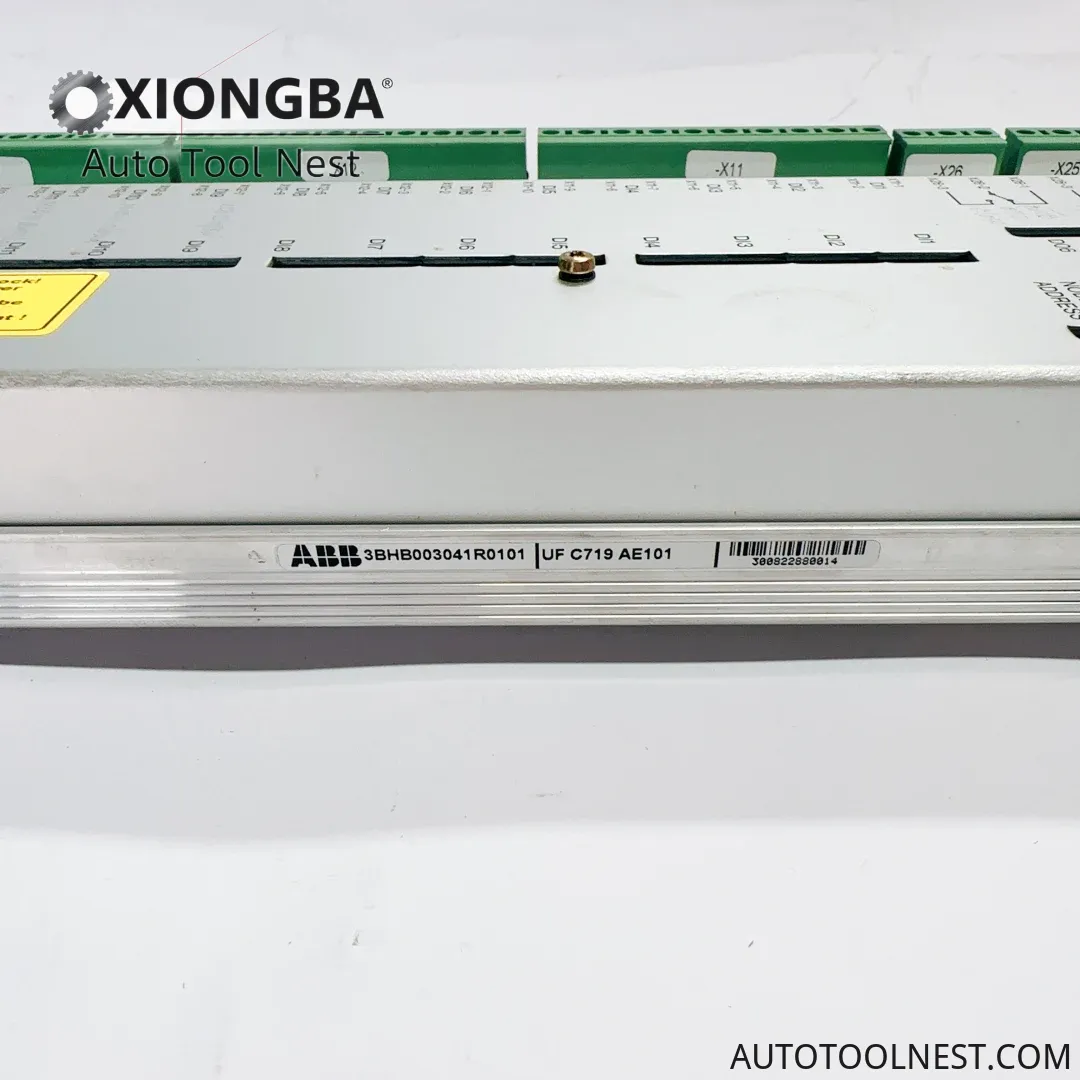

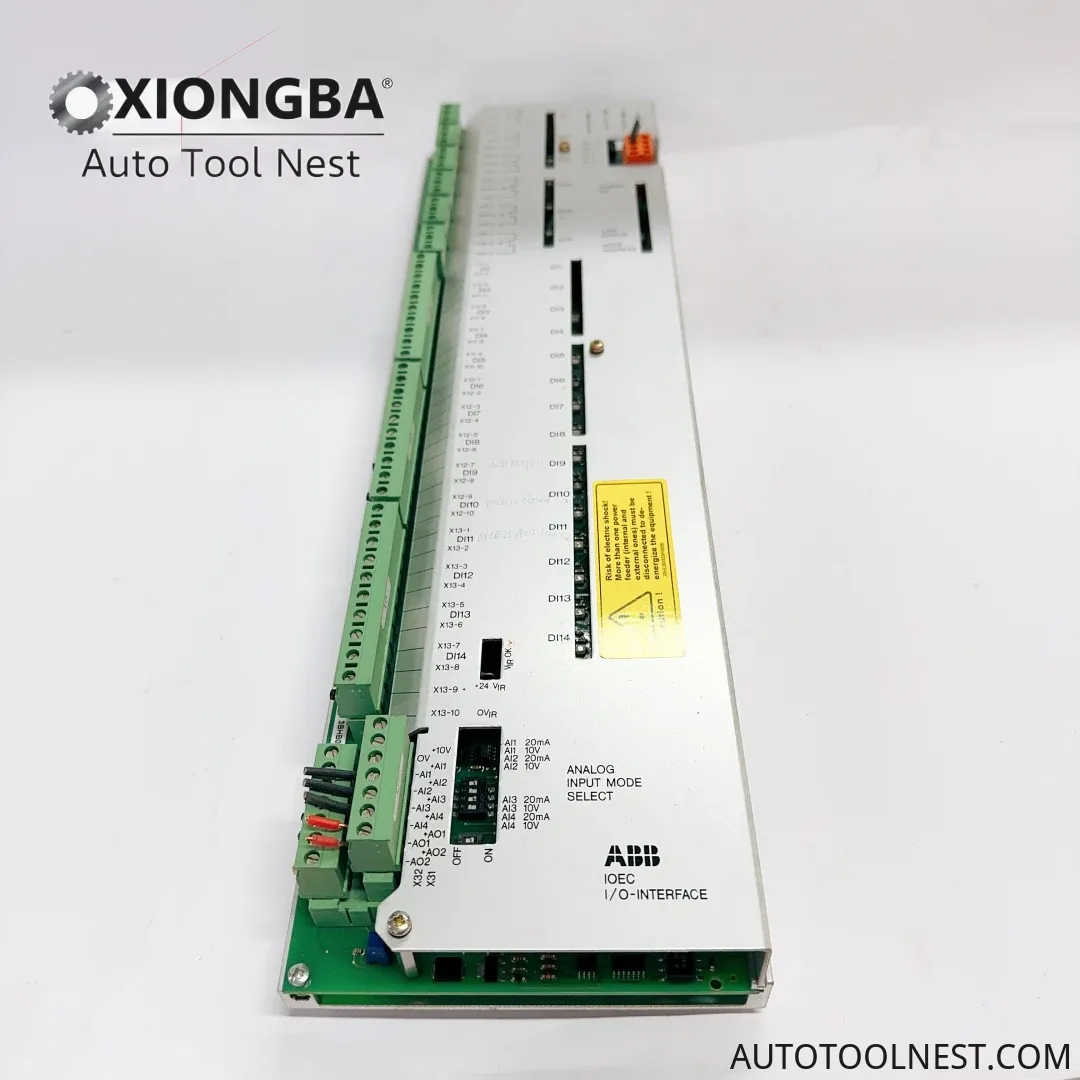

ABB UFC719AE01 3BHB003041R0101 – Drive Control Board for ABB Industrial Drives
The ABB UFC719AE01 (3BHB003041R0101) is a factory-grade control board used inside ABB drive cabinets to handle real-time drive control, interlocks, and internal communications. It’s typically found in ABB UFC-series control racks where stable process control and quick fault handling matter—think heavy-duty fans, compressors, mills, and long-running process lines. When you need to replace an aging board, this unit restores the integrity of the drive’s core control loop without changing field wiring.
Key Features
- Genuine ABB UFC-series design – Drop-in board for ABB drive control frames, minimizing engineering changes during replacement.
- Real-time drive coordination – Manages core control tasks and timing signals so speed/torque regulation stays consistent across load changes.
- Internal fiber-optic links – In many cases, communicates over ABB’s optical process bus for noise-immune, cabinet-safe signaling.
- Diagnostic visibility – Status LEDs and clear board labeling make fault finding quicker during commissioning or service.
- Robust build for cabinet environments – Designed for industrial conditions; typically runs reliably in closed drive enclosures with proper ventilation.
- Revision “AE01” compatibility – Matches the intended firmware and backplane interface used in corresponding ABB drive racks.
Technical Specifications
| Brand / Model | ABB UFC719AE01 (3BHB003041R0101) |
| Function | Drive control board for ABB UFC-series frames (internal control and communications) |
| Power Requirements | Supplied from the drive’s control power (typically 24 VDC via backplane; no external field supply) |
| Operating Temperature | Cabinet-installed electronics; in most cases 0…+55°C when installed per ABB cabinet guidelines |
| Signal I/O Types | Internal system signals via backplane and optical links; not intended for direct field wiring |
| Communication Interfaces | Drive-internal fiber optics (ABB process bus) and board-to-board connectors |
| Installation Method | Plug-in module for UFC rack position; fixed with screws/stand-offs; ESD-safe handling required |
| Compatibility | Used in selected ABB drive systems using UFC control frames; verify against drive cabinet code and software revision |
Application Fields
From my experience, the UFC719AE01 shows up where uptime is king and load profiles can be demanding. If you run:
- Continuous process lines in paper, chemicals, or food where smooth ramping and interlocks are crucial.
- Heavy-duty fans, pumps, and compressors in utilities or O&G that need stable speed control and quick trip response.
- Metals, mining, or cement where drives sit in hot, dusty environments and the control layer must stay predictable.
Advantages & Value
- Reduced downtime – Direct replacement board means shorter MTTR; typically no change to field-terminals or I/O cabinets.
- Lifecycle extension – Keeps your installed ABB drive base supported while you plan upgrades on your own timeline.
- Compatibility assurance – The AE01 revision aligns with the expected firmware baseline in many ABB racks.
- Procurement clarity – Clear part number mapping (UFC719AE01 / 3BHB003041R0101) eases spares planning and inventory control.
- Service-friendly – LEDs and labeling help your technicians pinpoint issues faster during shifts.
You might notice that the board is often paired with drive-internal fiber-optic leads and specific backplane slots. One thing I appreciate is how consistent the mechanical fit is—once aligned, it seats cleanly and the connectors feel secure. A maintenance lead in a cement plant told us, “Swapped the UFC719AE01 during a planned stop; drive came up on the first try and our trend data steadied immediately.” That seems to be the typical experience when the cabinet code and firmware are matched correctly.
Installation & Maintenance
- Cabinet standards – Install only in the designated UFC slot; confirm the cabinet code and wiring diagram before removal.
- ESD and handling – Use a grounded wrist strap and antistatic packaging; avoid touching component leads.
- Ventilation – Ensure cabinet fans/filters are clean; clogged filters raise internal temps and stress electronics.
- Fiber optics – If present, keep ends clean; never bend below the minimum radius; re-seat gently until a positive click.
- Wiring & torque – Fasten stand-offs and any retaining hardware to the specified torque to prevent vibration issues.
- Firmware & parameters – Back up parameters before swap; after installation, verify revision compatibility and run a controlled start.
- Routine care – Quarterly visual checks for dust or discoloration; carefully clean with dry air; review drive event logs after any process trips.
Quality & Certifications
- Manufacturing quality – Produced under ABB’s quality system (ISO 9001).
- Compliance – Installed as part of ABB drive systems that carry CE and, in many regions, UL/cUL approvals; RoHS-conform components are typically used.
- Warranty – Standard 12-month limited warranty from delivery on properly installed units, subject to normal operating conditions.
Notes on Compatibility
To avoid trial-and-error, match the UFC719AE01 against your drive’s cabinet code, software level, and any linked UFC/communication cards. If your system uses special options, sharing a photo of the rack and nameplate usually clears compatibility in minutes.
